DM3600A

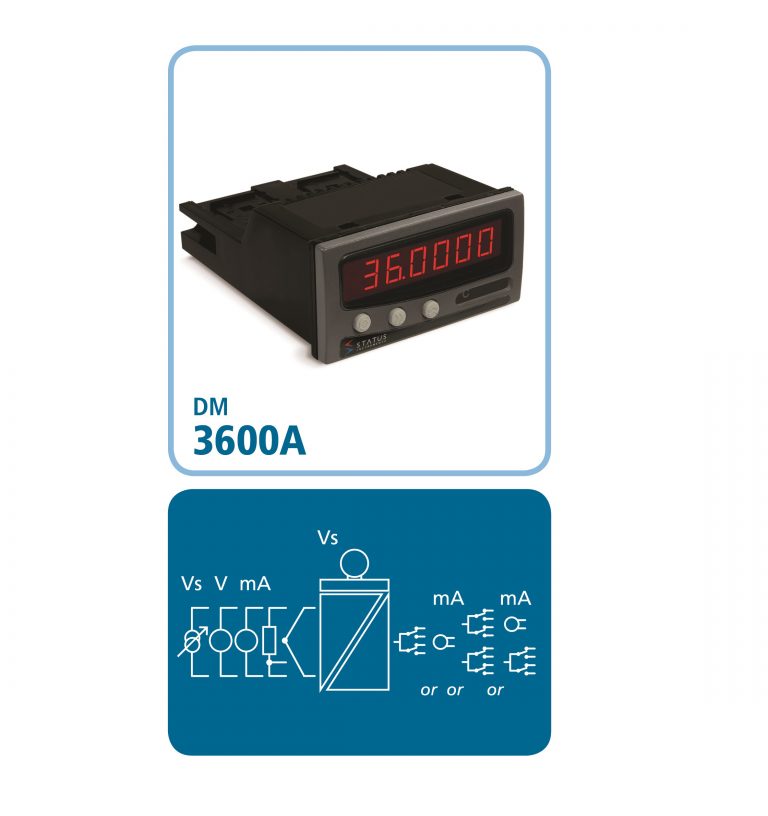

Digital Panel Meter with Totaliser DM3600A

The DM3600A is the totaliser variant of Status’s intelligent DM3600 universal digital panel meter, combining the same universal RTD, thermocouple, mV, Volts, and mA input capability with non-volatile flow totalisation. The integrated total is retained even after a power loss, and output options can be configured to operate on either the live process variable (PV) or the running total, making it well suited to flow monitoring and batching applications.

Like the rest of the DM3600 series, the DM3600A is housed in an IP65-sealed enclosure with a moulded rubber gasket and is configured through a guided three-button front-panel interface or remotely over an optional RS485 Modbus port. Plug-in output Pods add a scalable current re-transmission output or dual changeover alarm relays without dismantling the unit, and support for Status’s Transfer Function Module Library allows custom control functions to be downloaded and applied in the field.

Non-Volatile Totalising — Integrated flow total is retained even after loss of power.
Universal Sensor Input — Accepts RTD, thermocouple, mV, Volts, and mA signals.
PV or Total Output Selection — Output options can be scaled to track the live process variable or the running total.
Plug-In Output Pods — POD-03 current re-transmission and POD-02 dual alarm relays install without recalibration.
IP65 Sealed Front Panel — Rated for dusty and wash-down industrial environments.
RS485 Modbus Communications — Optional port for remote configuration and TFML custom function downloads.

What makes the DM3600A different from the DM3600U?

The DM3600A adds a non-volatile flow totaliser function on top of the same universal RTD, thermocouple, mV, Volts, and mA input capability as the DM3600U.

Does the DM3600A keep its total after a power cut?

Yes, the integrated total is stored non-volatilely and is retained even after the unit loses power.

Can the output track the total instead of the live reading?

Yes, output options can be configured to operate on either the process variable or the running total.

Is the DM3600A suitable for outdoor or washdown installation?

Its front panel is sealed to IP65 with a moulded rubber gasket, suitable for dusty or wash-down areas.
