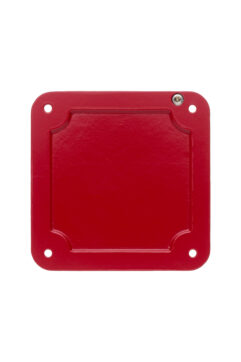

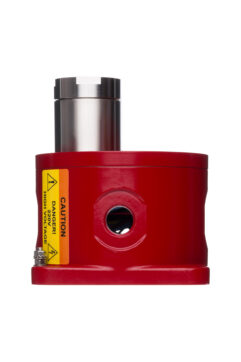

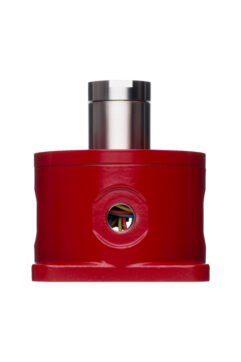

The CP 125 manual call point is a crucial safety component designed for use in explosive atmospheres.
Its ATEX certification ensures compliance with stringent safety standards for hazardous areas. Constructed from durable stainless steel, it offers exceptional resistance to corrosion.
Key Features:
ATEX Certified: Meets rigorous safety standards for use in hazardous areas.
Robust Construction: Stainless steel body for durability and corrosion resistance.
Versatile Output: Choose between on-off output (NC/NO) or 4-20mA DC for integration with PLC, ESD, or DCS systems.
Customization: Optional lift flap, LED indicator, resistor, and diode for tailored solutions.
Reliability: Built-in test function, visualization functions, and line detection for enhanced performance.
Applications:
The CP 125 manual call point is essential for emergency signaling in various industries, including:
Oil & gas
Chemical
Petrochemical
Pharmaceutical
Marine
Offshore
Technical Specifications:
Operating Temperature: -40°C to +70°C
Humidity: Up to 95% RH
Material: Stainless steel
IP Rating: IP66
Enclosure Color: Red, Blue, Yellow, Black/Yellow Stripes, customizable
Power Supply: 24V DC or 100-240V AC
Switch Rating: 250V AC- 11A (Resistive), 6A (Inductive), 30V DC- 6A (Resistive), 6A (Inductive)
Output: On-off Output (NC/NO) or 4-20mA DC
Certification: NEMKO 13ATEX1563X, IECEx NEM 13.0033X
| Construction | 316L Stainless Steel |
|---|---|
| Function | Manual alarm activation ("break glass") |
| Hazardous Rating | Zone 1 & 2 (gas), Zone 21 & 22 (dust) |
| Compliance | SIL2 (IEC 61508) |
Manually activating a fire or gas alarm in hazardous areas, commonly known as a "break glass" call point.
316L stainless steel, suited to corrosive and offshore environments.
PLC, ESD, and DCS systems.
