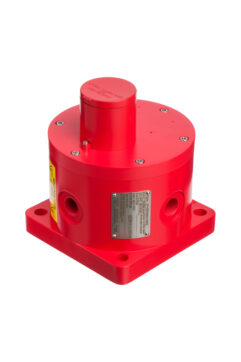

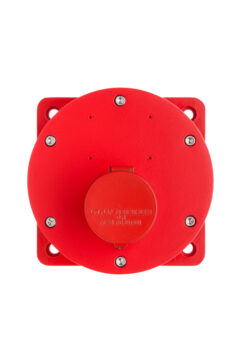

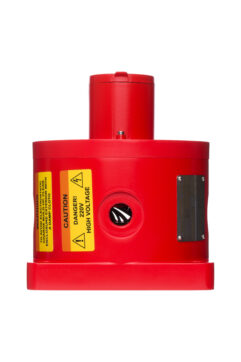

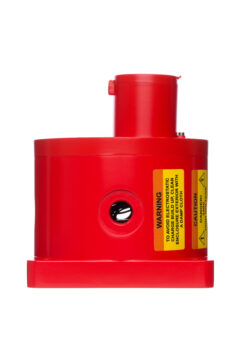

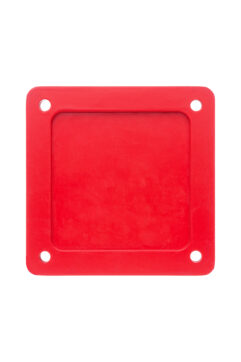

The CP 150 Ex manual call point is a critical safety component designed for use in explosive atmospheres. Constructed from corrosion-resistant GRP, it ensures durability and longevity in demanding industrial environments. This ATEX-certified device provides reliable emergency signaling for a wide range of applications.
Key Features:
ATEX Certified: Meets rigorous safety standards for hazardous areas.
Corrosion-Resistant: GRP construction withstands harsh environments.
Versatile Output: Choose between on-off output (NC/NO) or 4-20mA DC for integration with PLC, ESD, or DCS systems.

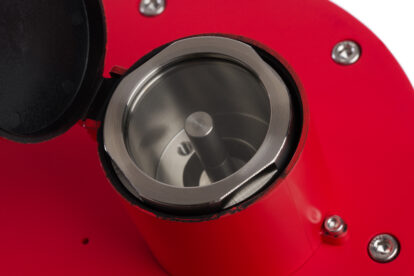

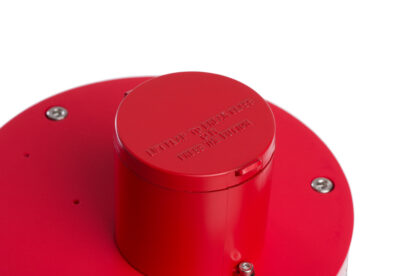

Customization: Optional lift flap, LED indicator, resistor, and diode for tailored solutions.
Reliability: Built-in test function, visualization functions, and line detection for enhanced performance.
Applications:
The CP 150 Ex manual call point is essential for emergency signaling in various industries, including:
Oil & gas
Chemical
Petrochemical
Pharmaceutical
Marine
Offshore
Technical Specifications:
Operating Temperature: -40°C to +70°C
Humidity: Up to 95% RH
Material: GRP
IP Rating: IP66
Enclosure Color: Red, Yellow, Blue, Black, Black with Yellow Zebra
Power Supply: 24V DC or 100-240V AC
Switch Rating: 250V AC- 11A (Resistive), 6A (Inductive), 30V DC- 6A (Resistive), 6A (Inductive)
Output: On-off Output (NC/NO) or 4-20mA DC
Certification: NEMKO 13ATEX1564X, IECEx NEM 13.0034X
| Construction | GRP (Glass-Reinforced Polyester) |
|---|---|
| Gas Group | IIC |
| Hazardous Rating | Zone 1 & 2 (gas), Zone 21 & 22 (dust) |
| Compliance | SIL2 (IEC 61508) |
Manually activating a fire or gas alarm, with GRP construction rated for the most demanding Group IIC gas environments (e.g. hydrogen).
Group IIC covers the most easily ignited gases, such as hydrogen, requiring the highest level of explosion protection.
PLC, ESD, and DCS systems.
