SB125 Ex Sounder and Beacon: Comprehensive SB125 Ex Sounder and Beacon: Comprehensive is a Ex-Tech Signalling product available from Daly Middle East for professional industrial applications.
SB125 Ex Sounder and Beacon: Comprehensive is a Ex-Tech Signalling product available from Daly Middle East for professional industrial applications.

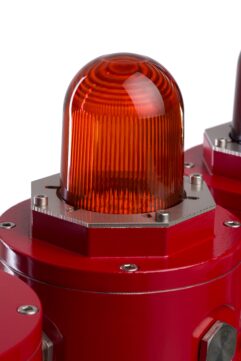

The SB125 Ex is a versatile combination device designed to provide both audible and visual warnings in explosive atmospheres. Constructed entirely from stainless steel, this ATEX-certified product offers exceptional durability and corrosion resistance for demanding industrial applications.
Key Features:
ATEX Certified: Meets rigorous safety standards for hazardous areas.
Robust Construction: Stainless steel housing and mounting plate for maximum durability.
Versatile Configuration: Sounder with 59 selectable tones and customizable beacon options.
Independent Control: Sounder and beacon can be controlled separately or together.
Remote Control: Optional telephone line control for added flexibility.
Modular Design: Can be configured with manual call point, push button, or junction box.
Applications:
The SB 125 Ex is ideal for a wide range of industries, including:
Oil & gas
Chemical
Petrochemical
Pharmaceutical
Marine
Offshore
Technical Specifications:
Operating Temperature: -40°C to +70°C
Humidity: Up to 95% RH
Material: Stainless steel
IP Rating: IP66/67
Enclosure Color: Red, Blue, Black, customizable
Lens: Tempered borosilicate glass
Power Supply: 12-48V DC or 100-240V AC
Power Consumption: Xenon: 2-25W, LED: 5W
Certification: NEMKO 13ATEX1561X, IECEx NEM 13.0030X
Combines audible sounder and visual beacon in a single flameproof unit
Sounder: up to 115dB, 59 pre-recorded tones (3 selectable)
Beacon: LED (steady, rotary, flashing) or Xenon tube, adjustable intensity
316L stainless steel construction with UV-resistant paint
Sounder and beacon can be triggered jointly or independently
ATEX/IECEx certified, SIL2 compliant
Certified ATEX Zone 1 & 2 (gas) and Zone 21 & 22 (dust)
| Noise Level | Up to 115 dB @ 1m |
|---|---|
| Construction | 316L Stainless Steel |
| Function | Combined sounder + beacon |
| Hazardous Rating | Zone 1 & 2 (gas), Zone 21 & 22 (dust) |
| Compliance | SIL2 (IEC 61508) |
Full technical and certification data as published by Ex-Tech Signalling Solutions.
Extech-SB-125-Combi-datasheet.pdfPDF
