The Ultimate Safe Lighting Solution for Confined Spaces.

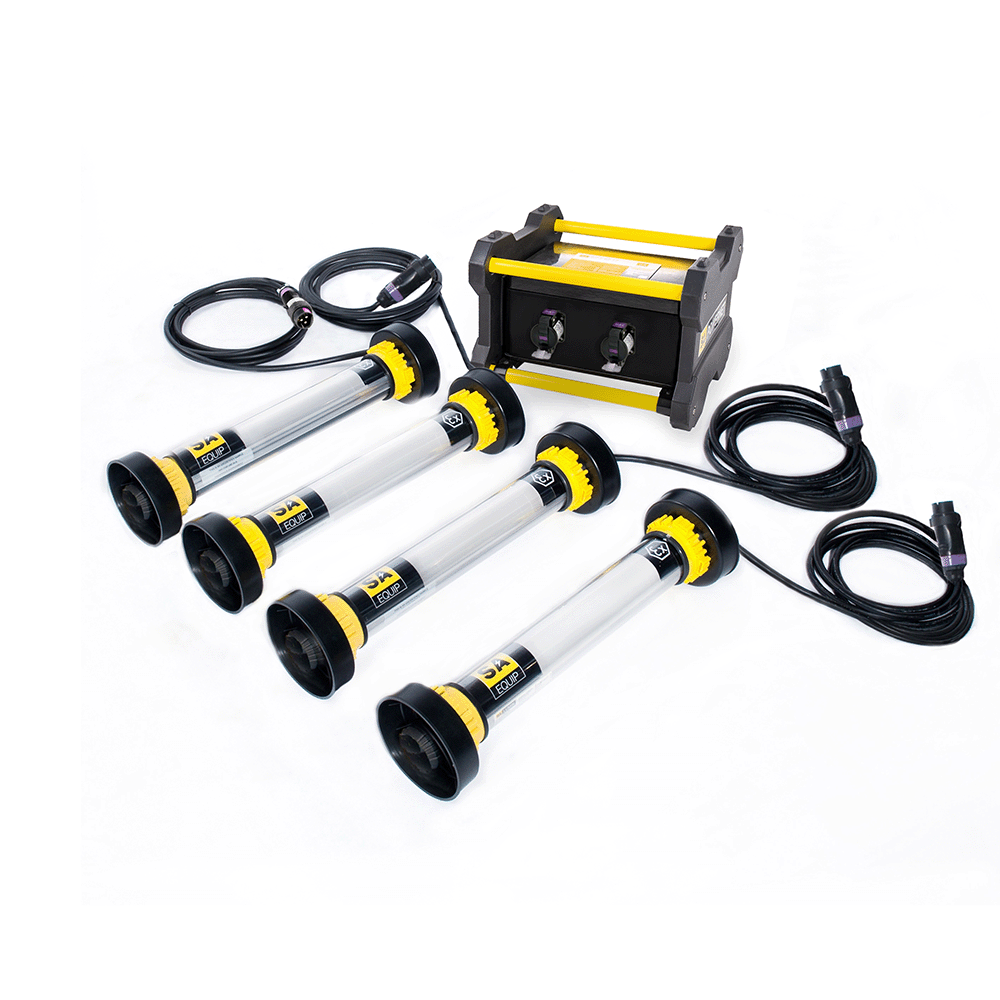

The SA LUMIN EX LED Vessel Entry Kit (SAVK) is a globally recognized, high-reliability lighting system specifically developed for hazardous areas. Certified for Zones 1 & 2 (Gas) and Zones 21 & 22 (Dust), this “all-in-one” kit is designed to make vessel, tank, and confined space work significantly safer and more efficient.
At the heart of the system is a highly ruggedized, portable transformer that converts mains power (110V or 230V) to a safe 24V low-voltage output. This powers a selection of high-output SA LUMIN worklights, ensuring an exceptional level of personnel safety by eliminating the risk of high-voltage electric shocks inside metallic or damp vessels. With its “plug-and-play” simplicity and unique armoured cabling, the SAVK is the industry standard for oil & gas, aviation, and utility maintenance teams.
Key Benefits
- Safe Low Voltage: The system operates on 24V DC, providing maximum safety for workers inside highly conductive metallic tanks and vessels.
- Full EX Certification: ATEX & IECEx approved for Zones 1 & 2 (Gas) and Zones 21 & 22 (Dust)—built for explosive atmospheres.
- Comprehensive Kit: Includes everything needed for site lighting: a 4-way transformer, worklights, and all necessary specialized cabling.
- Exceptional Durability: Features a highly ruggedized transformer unit and SA Equip’s unique armoured cabling to withstand heavy industrial use.
- Plug & Play Application: Fast and easy setup; high-quality connectors ensure reliable power distribution throughout the work area.
- Configurable Setup: Available with Worklight 100 (compact) or Worklight 200 (high output) units to suit your specific project requirements.
- Low Maintenance: Utilizes high-power LED technology with a 50,000+ hour lifespan, drastically reducing downtime and replacement costs.
Technical Specifications
- Product Code: SAVK100 (Worklight 100 version) / SAVK200 (Worklight 200 version)
- Certification: ATEX & IECEx (Zones 1 & 2 Gas / Zones 21 & 22 Dust), INMETRO Certified
- Transformer Input: 110VAC or 230VAC (50/60Hz)
- System Output: 24V Safe Low Voltage
- Standard Kit Contents:
- 1 x 110V/230V to 24V Ruggedized Transformer
- 4 x SA LUMIN EX LED Worklights (100 or 200 series)
- 15m Input Braided Cable (Transformer)
- 4 x 20m Output Braided Cables (Worklights)
- Plug/Socket Options: ATX, CEAG, STAHL
- Ingress Protection: IP66 (Transformer & Lights)
- Operating Temperature: -20°C to +55°C
- Weight: Variable based on kit configuration
Industry Applications: Oil & Gas Tanks, Aircraft Fuel Tanks, Chemical Vessels, Water Utility Tanks, Marine Vessels, Offshore Platforms, Pipeline Maintenance.
