SA POWERNET EX 3.8kVA Transformer – ATEX Certified Portable Power Solution

ATEX 3.8kVA transformer requirements should be checked against the available 230VAC or 400VAC input, required 110VAC or 230VAC output, connected load and installation conditions. The SA POWERNET EX model is listed with IP66 ingress protection and a -40°C to +55°C operating range.

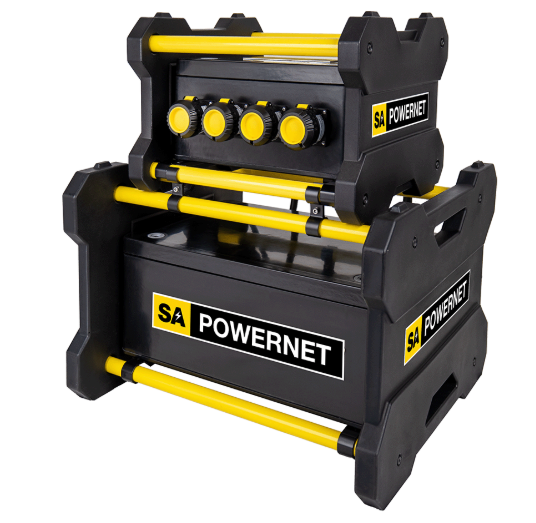

The SA POWERNET EX 3.8kVA Transformer delivers safe and reliable power for operations in demanding environments. With ATEX, IECEx, and UKEX certifications, this transformer provides a continuous 3.8kVA output, ensuring consistent performance even in extreme temperatures up to +55°C.

Its rugged, stackable design enhances portability and durability, allowing seamless integration with other SA POWERNET products to create customized power solutions. The transformer also features built-in MCB protection against overcurrents and optional RCD protection against electrical leakage, prioritizing safety for both personnel and equipment.

Key Features:

• Certifications: ATEX, IECEx, and UKEX certified for Zones 1, 2 (gas) and Zones 21, 22 (dust).
• Durability: Operates continuously at temperatures up to +55°C.
• Safety: Built-in MCB protection with optional RCD protection against electrical leakage.
• Versatility: Modular and stackable design for flexible power distribution configurations.
• Portability: Compact and lightweight design for easy transportation and setup.

Technical Specifications:

• Rating: 3.8kVA
• Input Voltage: 230VAC (16A Plug) or 400VAC (32A Plug)
• Output Voltage: 110VAC or 230VAC (4 x Socket outlets)
• Operating Temperature: -40°C to +55°C
• Ingress Protection: IP66
• Weight: 60kg (excluding cable)
• Cable Length: Standard 15m, customizable as needed
