Red LED Obstruction Light — ICAO Compliant | Hardy Lighting

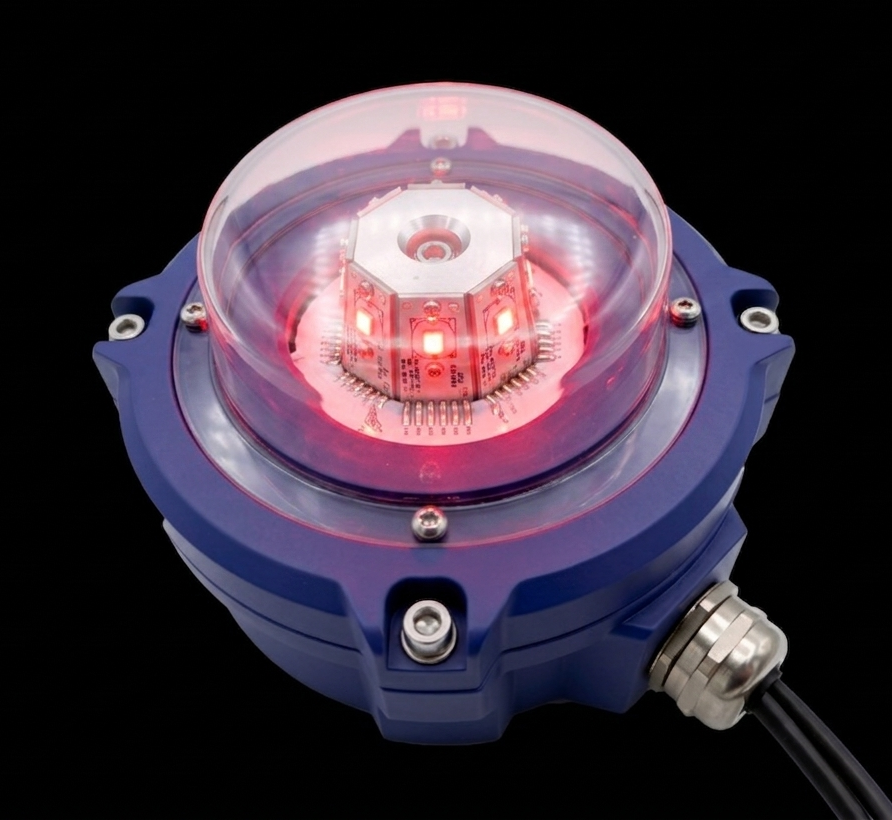

Hardy Lighting Low Intensity LED Obstruction Light — Red

The Hardy Lighting LED Obstruction Light Red is a low intensity, ICAO-compliant aviation warning light designed for deployment on tall structures including high-rise buildings, towers, cranes, and bridges. Available in 10cd, 32cd, and 200cd variants, this smart, microprocessor-controlled light provides reliable, maintenance-free obstruction marking in full compliance with CAP437, ICAO Annex 14, and FAA L-810 standards. Engineered and assembled in the UAE, it is built for long-term outdoor performance in the region’s most demanding environments.

Key Features

• Smart microprocessor-controlled — built-in temperature and voltage sensors continuously monitor performance
• Breather valve prevents internal condensation — critical for outdoor installations
• Aerodynamic, compact profile minimises wind resistance and simplifies installation
• Precision optical system delivers uniform, regulation-compliant light distribution
• Ultra-efficient LED with long-life driver technology matched to LED lifecycle
• Maintenance-free throughout operational lifespan
• Marine grade aluminium enclosure with powder coating — corrosion resistant and durable
• Flexible input voltage: AC 85–264V or DC 10–26V
• Proudly engineered and assembled in the UAE

---

Technical Specifications

Parameter	Specification
Application	Obstruction Lighting
Classification	Safe Area
Light Source	LED, steady burning
Colour	Red
Light Intensity Options	10cd, 32cd, 200cd
Enclosure	Marine Grade Aluminium, Powder Coated
Mounting	Rigid, 4 × M8
Input Voltage	AC 85–264V / DC 10–26V
Power Consumption	9W
Ambient Temperature	–25°C to +60°C
IP Rating	IP66
Salt Spray Tested	240 hours
Life Expectancy	100,000+ hours
Weight	2.20 kg
Dimensions (L×W×H)	180 × 180 × 122 mm
Cable Glands	2 × M25×1.5
Compliance	CAP437 / ICAO Annex 14 / FAA L-810 Type B
Warranty	2 years

---

Light Intensity Options

Intensity	Typical Application
10cd	Low structures, close-proximity obstruction marking
32cd	Standard obstruction marking — helipad, rooftop, telecom towers
200cd	Taller structures requiring enhanced visibility

---

Certifications

ICAO Compliant | CAP437 Compliant | FAA L-810 Type B | CE Certified | RoHS Compliant | IP66 Certified | Salt Spray Tested (240hrs) | ECAS Compliant

---

Applications

The Hardy Red LED Obstruction Light is suitable for:

• High-rise residential and commercial buildings
• Telecommunication and broadcast towers
• Construction cranes and temporary structures
• Bridges and elevated infrastructure
• Wind turbine towers
• Industrial chimneys and masts

---

Why Choose Hardy Lighting?

Hardy Lighting obstruction lights combine smart self-monitoring technology with a maintenance-free, ultra-durable design — reducing total cost of ownership significantly compared to conventional lighting solutions. With a 9W power draw and 100,000+ hour LED life, the Hardy Red Obstruction Light is one of the most cost-effective ICAO-compliant aviation warning lights available in the UAE market today.

Available in the UAE and the wider Middle East through Daly Middle East.
