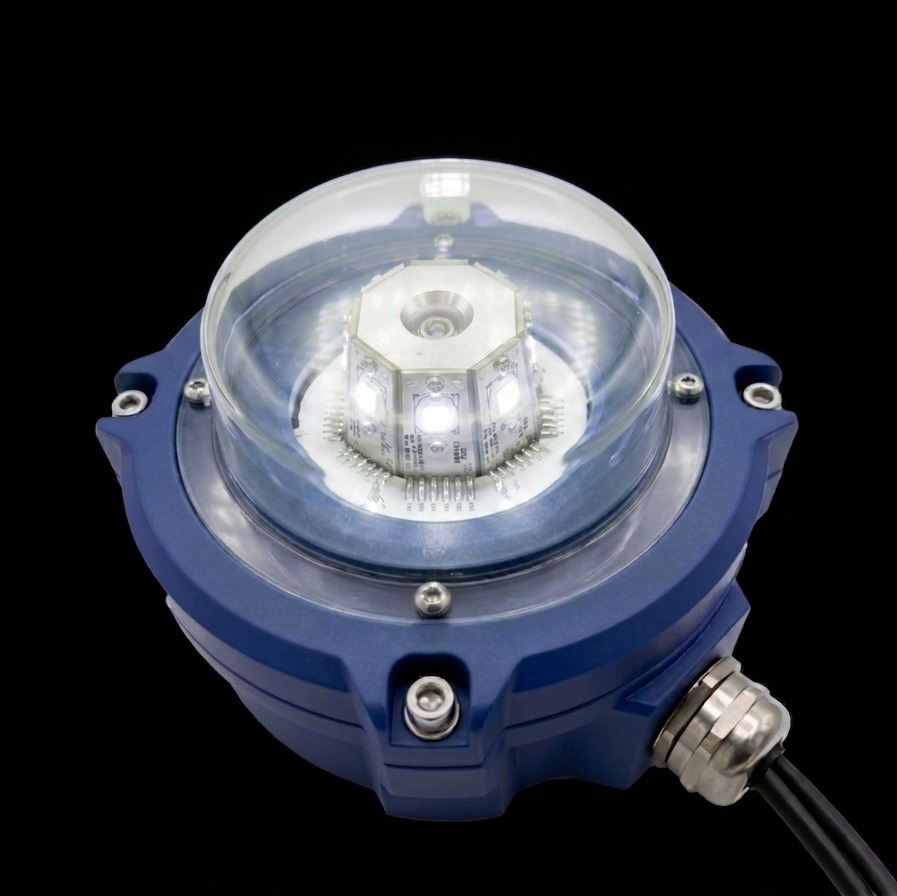

Hardy Lighting Low Intensity LED Obstruction Light — White
The Hardy Lighting White LED Obstruction Light is a precision aviation light engineered for helipad and rooftop installations where reliable, regulation-compliant white illumination is critical. Available in two variants — the FATO Light at 100cd and the Approach Light at 350cd — this smart, microprocessor-controlled light is fully compliant with ICAO Annex 14, CAP437, and FAA L-810 standards. Designed and assembled in the UAE, it is built to guide helicopter pilots safely during approach and take-off operations, night after night.
FATO Light — 100cd Provides crisp, uniform 100-candela white illumination to clearly define the Final Approach and Take-Off (FATO) zone. Essential for helipad boundary marking and pilot situational awareness during low-visibility operations.
Approach Light — 350cd High-intensity 350-candela white light engineered to cut through darkness and guide incoming flights with precision. Suitable for rooftop helipads and elevated helideck installations where long-range visibility is required.
| Parameter | Specification |
|---|---|
| Application | Helipad Obstruction / FATO / Approach Lighting |
| Classification | Safe Area |
| Light Source | LED, steady burning |
| Colour | White |
| Light Intensity Options | 100cd (FATO), 350cd (Approach) |
| Enclosure | Marine Grade Aluminium, Powder Coated |
| Mounting | Rigid, 4 × M8 |
| Input Voltage | AC 85–264V / DC 10–26V |
| Power Consumption | 9W |
| Ambient Temperature | –25°C to +60°C |
| IP Rating | IP66 |
| Salt Spray Tested | 240 hours |
| Life Expectancy | 100,000+ hours |
| Weight | 2.20 kg |
| Dimensions (L×W×H) | 180 × 180 × 122 mm |
| Cable Glands | 2 × M25×1.5 |
| Compliance | CAP437 / ICAO Annex 14 / FAA L-810 Type B |
| Warranty | 2 years |
ICAO Compliant | CAP437 Compliant | FAA L-810 Type B | CE Certified | RoHS Compliant | IP66 Certified | Salt Spray Tested (240hrs) | ECAS Compliant
The Hardy White Obstruction Light delivers two of the most critical light points on any helipad — the FATO boundary and the approach corridor — in a single product family with consistent specifications and certifications. With 9W power consumption, a 100,000+ hour lifespan, and zero scheduled maintenance, it significantly reduces the operational cost of helipad lighting compliance over time.
Available in the UAE and the wider Middle East through Daly Middle East.
