Explosion Proof Air Conditioner – Ex-M Power Inverter Series (24/7 Duty, ATEX Zone 2 & 22)

The explosion proof air conditioner Ex-M Power Inverter Series is a high-reliability ATEX air conditioner engineered for 24/7 continuous operation in hazardous industrial environments. Based on OEM Mitsubishi Electric Mr. Slim inverter technology, this hazardous area air conditioner is modified and ATEX-certified by Ex-Machinery for safe use in ATEX Zone 2 and Zone 22.

Designed for applications where temperature stability is critical, this explosion proof HVAC system ensures uninterrupted cooling and heating for sensitive equipment and personnel. The Ex-M Power Inverter Ex proof air conditioner is ideal for analyzer rooms, battery housings, storage containers, and industrial facilities requiring round-the-clock climate control with certified explosion protection.

Key Features & Benefits

• Certified explosion proof air conditioner for ATEX Zone 2 and Zone 22

• Reliable ATEX air conditioner for 24/7 continuous duty

• Based on OEM Mitsubishi Electric inverter technology

• Designed to operate continuously without shutdowns

• Cooling and heating capability in hazardous areas

• High efficiency inverter technology

• Stable temperature control for sensitive applications

• Multiple indoor unit installation options

• Optional marine-grade corrosion protection

• 5-year warranty on parts

Technical Overview – Explosion Proof HVAC System

• Product Type: Explosion proof air conditioner

• ATEX Classification: Zone 2 (Gas) & Zone 22 (Dust)

• OEM Platform: Mitsubishi Electric Mr. Slim (Inverter)

• Duty Cycle: 24/7 continuous operation

• Operating Temperature Range: –15°C to +46°C

• Refrigerant: R32 (R410A optional)

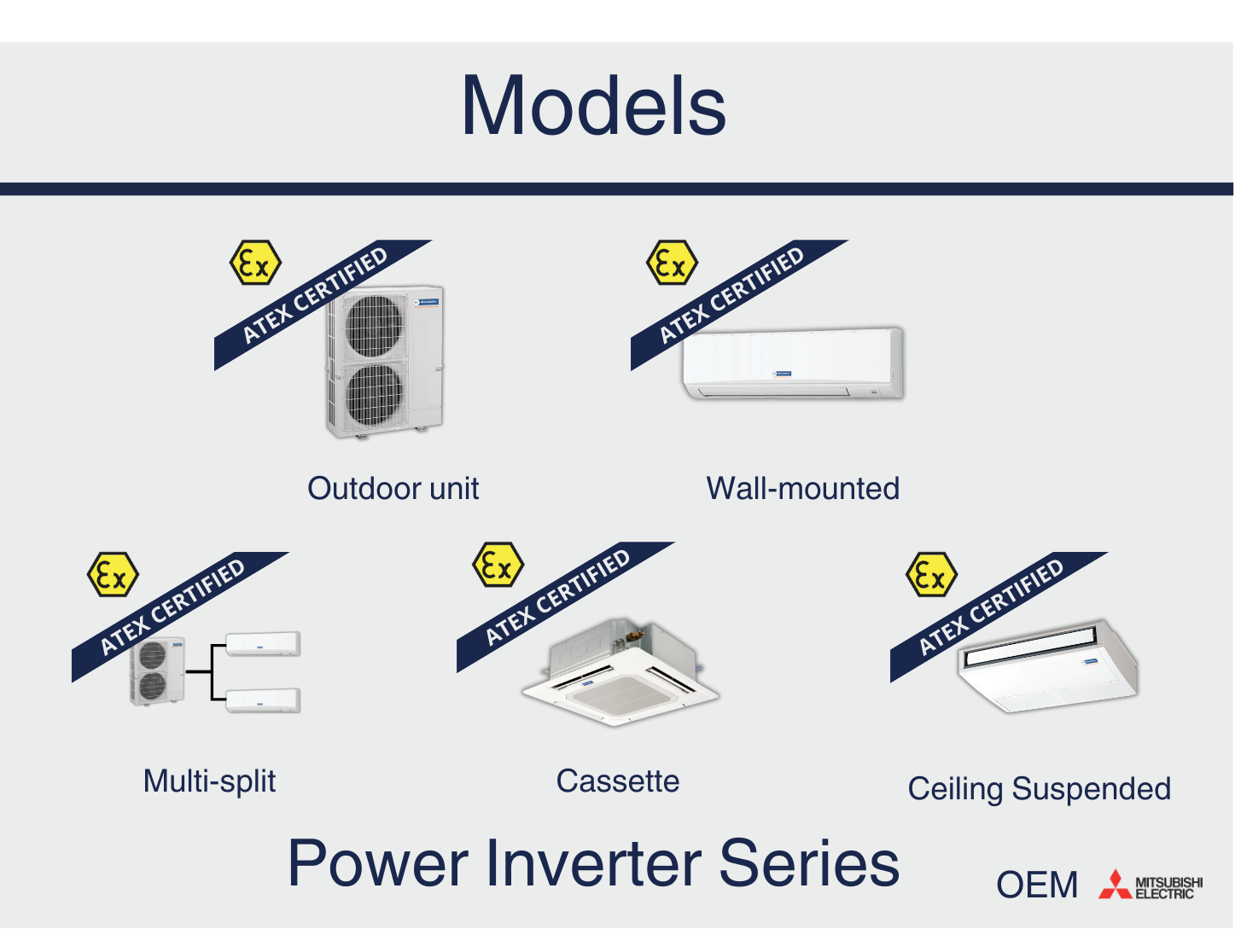

• Indoor Unit Types:

  • Wall-mounted

  • Ceiling-suspended

  • Cassette

• Available Configurations:

  • Indoor unit in hazardous area, outdoor unit in safe area

  • Indoor unit in safe area, outdoor unit in hazardous area

  • Both indoor and outdoor units ATEX-certified

• Control Options: Infrared remote, wired controller, BMS / DCS integration (optional)

📌 For full technical specifications, performance data, and dimensions, please refer to the downloadable datasheet.

Applications of Explosion Proof Air Conditioner

This 24/7 duty explosion proof air conditioner is ideally suited for:

• Analyzer rooms and instrument shelters

• Battery rooms and energy storage units

• Offshore and onshore containers

• Paint storage and hazardous warehouses

• Control rooms requiring constant temperature

• Industrial production areas with flammable materials

• Chemical and petrochemical facilities
