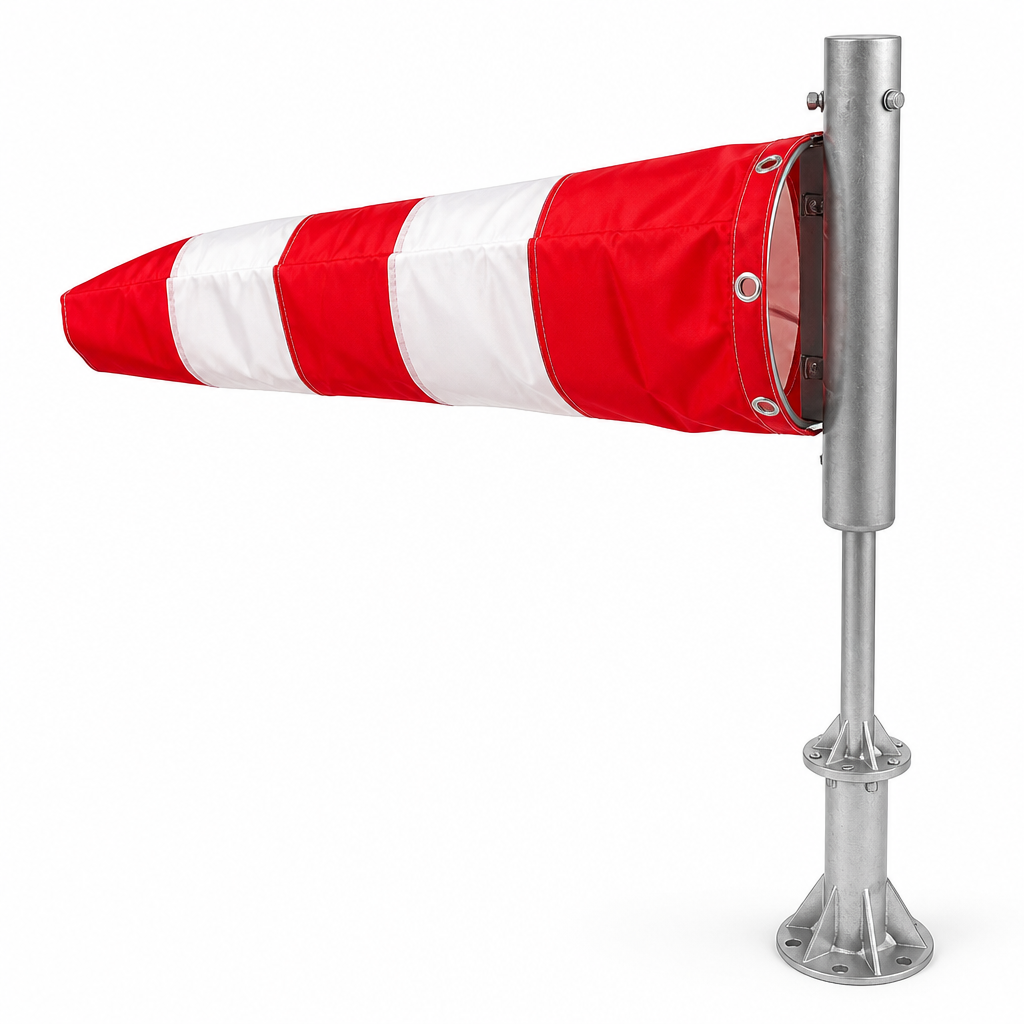

Hardy Lighting Safe Area Unlighted Windsock — Wind Directional Indicator

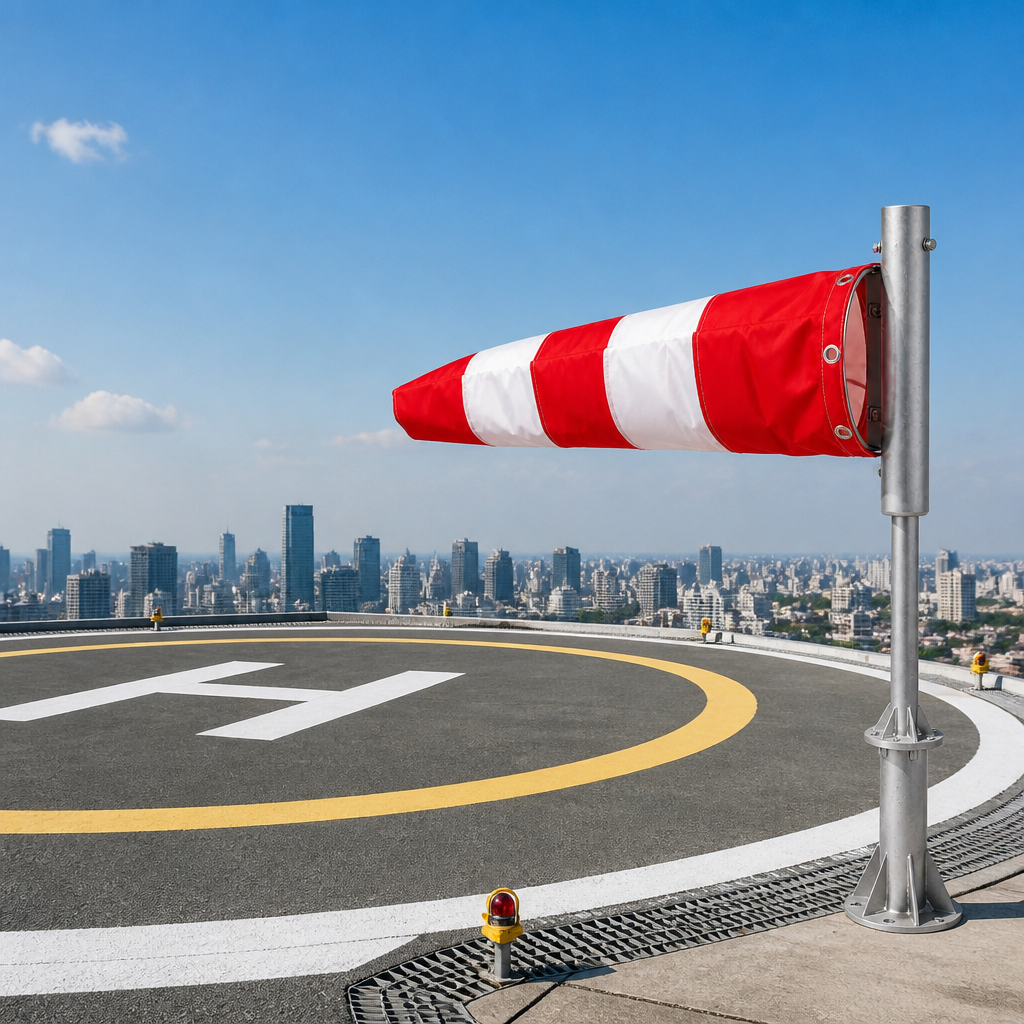

The Hardy Lighting unlighted windsock is a robust, fully SS316 stainless steel wind directional indicator designed for helipad and onshore safe area applications. Featuring a 360-degree freely rotating frame and hoop assembly, it provides continuous, accurate wind direction indication without the need for electrical connection — making it an ideal low-maintenance solution for sites where lighting is not required or already provided separately. ICAO compliant and IP66 rated, this unlighted wind directional indicator is built to withstand the harshest outdoor conditions.
| Parameter | Specification |
|---|---|
| Application | Helipad / Onshore |
| Classification | Safe Area |
| Assembly | SS316 fully rotatable |
| Mast Specification | SS316, Ø65 × 2mm |
| Mast Length (Y) | 300mm – 6,000mm (customisable) |
| Mounting | SS316 Flange, DN65, 4 × M16 |
| Tiltable | No |
| Windsock Frame (X) | SS316 rotating frame and hoop |
| IP Rating | IP66 |
| Life Expectancy | 100,000+ hours |
| Maximum Mast Length | Up to 6m |
| Windsock Colours | Red/White, Orange/White, Orange, Red |
| Diameter × Length | Imperial Equivalent |
|---|---|
| Ø30 × 120 cm | 11.8″ × 3.9 ft |
| Ø45 × 250 cm | 17.7″ × 8.2 ft |
| Ø50 × 150 cm | 19.7″ × 4.9 ft |
Note: Windsock cloth is not included. Windsock frame must match the selected windsock diameter.
The Hardy Unlighted Windsock system consists of four components ordered separately:
1 — Mast 2 — Wind Indicator (rotating head unit) 3 — Sock Frame 4 — Sock (windsock cloth)
Each component is available independently, allowing full flexibility in configuration and replacement.
ICAO Compliant | IP66 Rated | Made in UAE
Looking for an illuminated windsock solution? Hardy Lighting also offers:
