How much light does the Modular Max Series produce?

Up to 70,000 lumens at up to 180 lm/W efficacy.

Is the Modular Max Series DLC certified?

Yes, it is DLC Premium certified, qualifying for top-tier utility rebates.

What hazardous locations is the Modular Max Series rated for?

It is certified for Class I Division 2, Class II Division 1 and 2, Class III, and Zone 2, 20, 21 and 22 hazardous locations.

How lightweight is the Modular Max Series?

It is over 25% lighter than comparable C1D2/C2D1 floodlights while maintaining full hazardous-location certification.

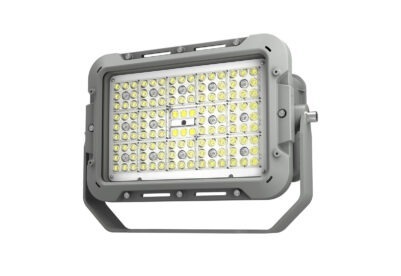

Red Sky Lighting – Modular Max Series – C1D2/C2D1 Explosion-Proof High-Lumen LED Flood/High Bay (up to 70,000 lm)

Name: Red Sky Lighting – Modular Max Series – C1D2/C2D1 Explosion-Proof High-Lumen LED Flood/High Bay (up to 70,000 lm)
Brand: Red Sky Lighting
SKU: MDX

Red Sky Lighting's revolutionary Modular Max Series (MDX) has been awarded the prestigious Red Dot Design Award for Lighting Design!

Certification & ratingVerified

Lumen OutputUp to 70,000 lm

EfficacyUp to 180 lm/W

Hazardous RatingClass I Div 2, Class II Div 1/2, Class III, Zone 2/20/21/22

Ambient Temperature-45°C to +65°C

Genuine certified equipment sourced directly through Daly Middle East.

Full manufacturer support and warranty.

Red Sky Lighting's revolutionary Modular Max Series (MDX) has been awarded the prestigious Red Dot Design Award for Lighting Design! As a distributor of their innovative products, we're proud to bring the MDX Series to your industrial lighting projects.

The MDX Series is a game-changer, designed to tackle the challenges of harsh and demanding environments. Here's why it stands out:

Unmatched Safety and Reliability: C1D2/C2D1 certified for hazardous locations, exceptional weather resistance, and built to endure high-vibration environments.
Durability and Performance: Long-lasting performance with a 70,000-lumen output and an L70 rating of 230,000 hours, IK10 impact resistance, and efficient thermal management.
Easy to Install and Maintain: Lightweight design, innovative hinge structure for quick installation, and simplified maintenance thanks to a user-friendly design.
Energy-Efficient and Sustainable: Delivers exceptional brightness with an efficacy of 180lm/W, recyclable housing, and an optional wildlife-friendly amber light.

Lumen Output	Up to 70,000 lm
Efficacy	Up to 180 lm/W
Hazardous Rating	Class I Div 2, Class II Div 1/2, Class III, Zone 2/20/21/22
Ambient Temperature	-45°C to +65°C
Ingress Protection	IP66/67, NEMA 4X, IK10
Certification	DLC Premium

Lumen Output

Up to 70,000 lm

Efficacy

Up to 180 lm/W

Hazardous Rating

Class I Div 2, Class II Div 1/2, Class III, Zone 2/20/21/22

Ambient Temperature

-45°C to +65°C

Ingress Protection

IP66/67, NEMA 4X, IK10

Certification

DLC Premium
