EX-High Power Air Mover — SA CYCLONE SAF35HP

Name: EX High Power Air Mover – Hazardous Area Ventilation Fan | SA Equip
Price: 11.00 AED
Availability: InStock

Unmatched Ventilation for Hazardous Environments

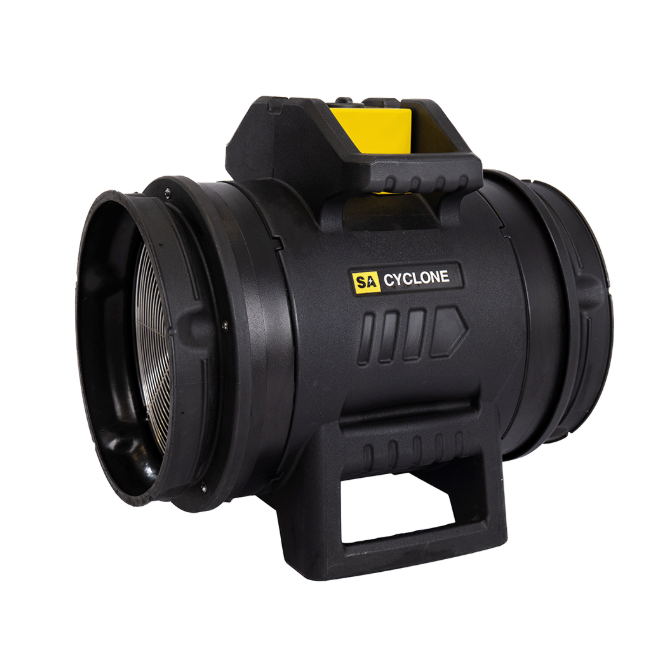

The SA CYCLONE High Power Air Mover (SAF35HP) is a premium, EX-certified portable ventilation fan engineered for the most demanding hazardous area applications. Whether you need to supply fresh air or extract contaminated air, gases, or dust, this high-performance air mover delivers powerful, reliable airflow — even over long duct runs.

Built with a twin-wall polymer housing and a high-efficiency motor, the SAF35HP stands apart from standard air movers. It’s specifically designed to overcome back pressure created by long duct lengths, ensuring optimum air movement in confined spaces, tanks, vessels, and offshore platforms.

Certified for Zones 1 & 2 (Gas) and Zones 21 & 22 (Dust) — fully covered for explosive gases and combustible dusts.

Key Benefits

Benefit	Why It Matters
Multi-Duct Configurability	Use with 10cm, 20cm, 30cm & 40cm ducting — including multiple 10cm ducts for LEV (Local Exhaust Ventilation) setups. One unit replaces several.
Exceptional Back Pressure Handling	The powerful motor maintains strong airflow even through long duct runs, making it ideal for deep confined spaces and complex extraction routes.
Dual-Function Operation	Works as a blower (supply fresh air) or exhauster/fume extractor (remove contaminated air/gas) — total versatility.
Ultra-Durable Construction	Twin-wall polymer housing — tougher, more impact-resistant, and longer-lasting than standard single-wall designs.
Full EX Certification	ATEX, UKCA EX & IECEx approved for Zones 1, 2 (gas) and Zones 21, 22 (dust) — safe for explosive atmospheres.
Ergonomic & Portable	Lightweight (22kg), with easy-carry handles, integral cable storage, and stackable design for efficient transport and storage.
Weatherproof & Rugged	IP66 rated — fully protected against dust and powerful water jets. Operates reliably in -40°C to +55°C.
Motor Thermal Protection	Built-in thermal cut-out prevents overheating, ensuring safe operation in critical environments.

Technical Specifications

Specification	Details
Product Code	SAF35HP
Certification	II 2 G Ex db eb h IIB+H2 T4 Gb
Ingress Protection	IP66
Operating Temperature	-40°C to +55°C
Voltage Options	110VAC (±10%) / 230VAC (±10%) — 50/60Hz
Power Consumption	0.45kW @ 50Hz / 0.75kW @ 60Hz
Motor Protection	Thermal cut-out (auto-reset after cooling)
Housing Material	Anti-static polyethylene, flame retardant & chemical resistant
Impeller Material	Anti-static glass-reinforced nylon
Finger Guards	Marine-grade stainless steel
Supply Cable	10m HOFR braided, H07RN-F (or as specified)
Start-up Current	110V: 21A (50Hz) / 17A (60Hz) · 230V: 12A (50Hz) / 12A (60Hz)
Run Current	110V: 6A (50Hz) / 7A (60Hz) · 230V: 3A (50Hz) / 5A (60Hz)
Weight	Approx. 22kg (without adaptors, excl. cable)
Dimensions (without adaptors)	458mm (L) × 349mm (W) × 590mm (H)
Dimensions (with adaptors)	458mm (L) × 498mm (W) × 590mm (H)
Noise Level @ 1m	78 dBA (50Hz) / 81 dBA (60Hz)

Performance Data

Configuration	50Hz	60Hz
Free Airflow — No Adaptors	4,265 m³/hr (2,510 cfm)	4,872 m³/hr (2,868 cfm)
Free Airflow — 30cm Adaptors	3,319 m³/hr (1,953 cfm)	3,712 m³/hr (2,185 cfm)
Free Airflow — 40cm Adaptors	4,559 m³/hr (2,683 cfm)	5,179 m³/hr (3,048 cfm)

Ducted Airflow Guide (30cm Ducting):

5m duct: 2,475 m³/hr (50Hz) / 2,750 m³/hr (60Hz)
10m duct: 1,925 m³/hr (50Hz) / 2,175 m³/hr (60Hz)
15m duct: 1,375 m³/hr (50Hz) / 1,550 m³/hr (60Hz)
20m duct: 845 m³/hr (50Hz) / 970 m³/hr (60Hz)

Industry Applications

✅ Offshore platforms & oil rigs
✅ Oil refineries & petrochemical plants
✅ Vessels, tanks & confined spaces
✅ Chemical processing plants
✅ Shipbuilding & repair yards
✅ Utilities & power generation
✅ Mining & tunnelling
✅ Aviation & rail maintenance

Compatibility

The SAF35HP is fully compatible with the SA CYCLONE modular system, including:

SA CYCLONE Anti-static Ducting (10cm, 20cm, 30cm, 40cm diameters)
Duct connectors & couplers
Filtration Units
Manway Adaptors
Negative Pressure Units (NPU)

Frequently Asked Questions

Q: What’s the difference between the SAF35HP and the standard SAF35 air mover? A: The SAF35HP features a high-power motor with superior back-pressure handling, a twin-wall polymer housing for extra durability, and supports 10cm duct configurations for LEV setups — ideal for more demanding industrial applications.

Q: Can this unit be used in explosive dust atmospheres? A: Yes. The SAF35HP is certified for both Zones 1 & 2 (gas) and Zones 21 & 22 (dust) — full dual-risk coverage.

Q: What plug options are available? A: We offer ATX, CEAG, and STAHL connector options. Please contact us for specific requirements.

Q: Can the air mover be used with ducting on both inlet and outlet? A: Absolutely. The unit can be configured with ducting on inlet (extraction), outlet (blowing), or both ends simultaneously for long-distance ventilation.

Q: Is the motor protected against overheating? A: Yes. The motor has a thermal cut-out that automatically shuts off the unit in the event of overload. It auto-restarts after cooling down.
