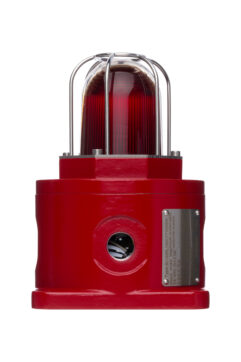

BC125 Ex Beacon: Safety and Reliability in Hazardous Zones

The BC125 Ex beacon is a high-performance signal light specifically engineered for use in explosive atmospheres. With its ATEX certification for zones 1, 2, 21, and 22, it ensures optimal safety in demanding industrial environments.

Key Features:

• ATEX Certified: Meets rigorous safety standards for use in hazardous areas.
• Durable Construction: Stainless steel housing and borosilicate glass lens withstand corrosive environments.
• Versatile Lighting Options: LED and Xenon light sources with adjustable flashing frequencies.
• Customization: Choose from various enclosure and lens colors to match your requirements.
• Remote Control: Optional telephone line control for added flexibility.

Applications:

The BC125 Ex beacon is ideal for a wide range of industries, including:

• Oil & gas
• Chemical
• Petrochemical
• Pharmaceutical
• Marine
• Offshore

Technical Specifications:

• Operating Temperature: T6 = -40°C + 55°C, T5 = -40°C + 60°C, T4 = -40°C + 70°C
• Material: Stainless steel
• IP Rating: IP66/67
• Light Source: LED or Xenon
• Enclosure Color: Red, Blue, Black, customizable
• Lens Color: Red, Yellow, Blue, Green, Clear
• Power Supply: 12-48V DC or 100-240V AC
• Power Consumption: Xenon: 2-25W, LED: 5W
• Standards: EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31
• Certification: Nemko 13 ATEX 1561X, IECEx NEM 13.0030X
