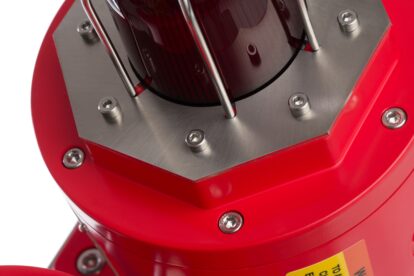

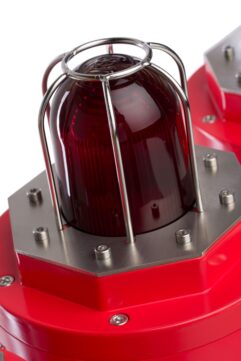

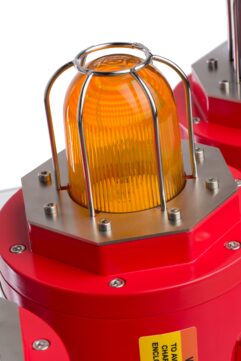

The SB 150-2,3,4 Ex is a versatile combination device designed to provide both audible and visual warnings in explosive atmospheres. Constructed with a robust GRP housing and stainless steel mounting plate, this ATEX-certified product offers exceptional durability and corrosion resistance for demanding industrial applications.
Key Features:
- ATEX Certified: Meets rigorous safety standards for hazardous areas.
- Corrosion-Resistant: GRP housing and stainless steel mounting plate for long life.
- Versatile Configuration: Sounder with 59 selectable tones and customizable beacon options.
- Independent Control: Sounder and beacon can be controlled separately or together.
- Remote Control: Optional telephone line control for added flexibility.
- Modular Design: Can be configured with manual call point, push button, or junction box.
Applications:
The SB 150-2,3,4 Ex is ideal for a wide range of industries, including:
- Oil & gas
- Chemical
- Petrochemical
- Pharmaceutical
- Marine
- Offshore
Technical Specifications:
- Operating Temperature: -40°C to +70°C
- Humidity: Up to 95% RH
- Material: GRP enclosure, Stainless steel mounting plate
- IP Rating: IP66/67
- Enclosure Color: Red, Blue, Black, customizable
- Lens: Tempered borosilicate glass
- Power Supply: 12-48V DC or 100-240V AC
- Power Consumption: Xenon: 2-25W, LED: 5W
- Certification: NEMKO 13ATEX1561X, IECEx NEM 13.0030X
