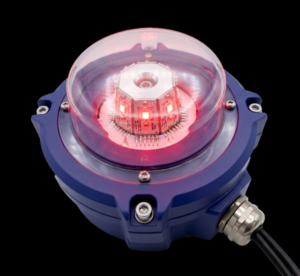

Hardy Lighting Low Intensity LED Obstruction Light — Red
The Hardy Lighting LED Obstruction Light Red is a low intensity, ICAO-compliant aviation warning light designed for deployment on tall structures including high-rise buildings, towers, cranes, and bridges. Available in 10cd, 32cd, and 200cd variants, this smart, microprocessor-controlled light provides reliable, maintenance-free obstruction marking in full compliance with CAP437, ICAO Annex 14, and FAA L-810 standards. Engineered and assembled in the UAE, it is built for long-term outdoor performance in the region’s most demanding environments.
Key Features
- Smart microprocessor-controlled — built-in temperature and voltage sensors continuously monitor performance
- Breather valve prevents internal condensation — critical for outdoor installations
- Aerodynamic, compact profile minimises wind resistance and simplifies installation
- Precision optical system delivers uniform, regulation-compliant light distribution
- Ultra-efficient LED with long-life driver technology matched to LED lifecycle
- Maintenance-free throughout operational lifespan
- Marine grade aluminium enclosure with powder coating — corrosion resistant and durable
- Flexible input voltage: AC 85–264V or DC 10–26V
- Proudly engineered and assembled in the UAE
Technical Specifications
| Parameter | Specification |
|---|---|
| Application | Obstruction Lighting |
| Classification | Safe Area |
| Light Source | LED, steady burning |
| Colour | Red |
| Light Intensity Options | 10cd, 32cd, 200cd |
| Enclosure | Marine Grade Aluminium, Powder Coated |
| Mounting | Rigid, 4 × M8 |
| Input Voltage | AC 85–264V / DC 10–26V |
| Power Consumption | 9W |
| Ambient Temperature | –25°C to +60°C |
| IP Rating | IP66 |
| Salt Spray Tested | 240 hours |
| Life Expectancy | 100,000+ hours |
| Weight | 2.20 kg |
| Dimensions (L×W×H) | 180 × 180 × 122 mm |
| Cable Glands | 2 × M25×1.5 |
| Compliance | CAP437 / ICAO Annex 14 / FAA L-810 Type B |
| Warranty | 2 years |
Light Intensity Options
| Intensity | Typical Application |
|---|---|
| 10cd | Low structures, close-proximity obstruction marking |
| 32cd | Standard obstruction marking — helipad, rooftop, telecom towers |
| 200cd | Taller structures requiring enhanced visibility |
Certifications
ICAO Compliant | CAP437 Compliant | FAA L-810 Type B | CE Certified | RoHS Compliant | IP66 Certified | Salt Spray Tested (240hrs) | ECAS Compliant
Applications
The Hardy Red LED Obstruction Light is suitable for:
- High-rise residential and commercial buildings
- Telecommunication and broadcast towers
- Construction cranes and temporary structures
- Bridges and elevated infrastructure
- Wind turbine towers
- Industrial chimneys and masts
Why Choose Hardy Lighting?
Hardy Lighting obstruction lights combine smart self-monitoring technology with a maintenance-free, ultra-durable design — reducing total cost of ownership significantly compared to conventional lighting solutions. With a 9W power draw and 100,000+ hour LED life, the Hardy Red Obstruction Light is one of the most cost-effective ICAO-compliant aviation warning lights available in the UAE market today.
Available in the UAE and the wider Middle East through Daly Middle East.
