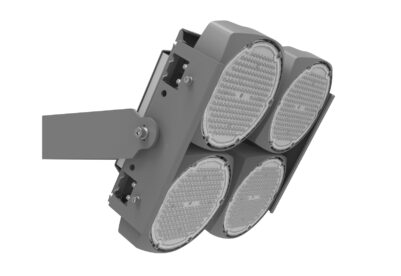

The Crane Master Series LED Luminaire is engineered to excel in the most challenging lighting applications. Designed for high pole lights, port cranes, and traveling cranes, this luminaire offers exceptional optical performance, energy efficiency, and durability.
Key Features
- High Luminous Efficacy: Achieve significant energy savings with a luminous efficacy of up to 140Lm/W.
- Versatile Beam Angles: Choose from a range of beam angles (PC: 30°, 60°, 90°, 30*120°; Glass: 120°) to optimize light distribution.
- Robust Construction: Polyster powder coating, stainless steel hardware, and tempered glass ensure long-lasting performance.
- Wide Operating Temperature Range: Operate reliably in extreme conditions from -40°C to +55°C.
Technical Specifications
Electrical Parameters
- Power (W): 150W, 300W, 420W, 560W
- Voltage (V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: > 90%
- THD: < 20%
- L70: 140,000 Hours@50°C
- Warranty: 5 years
Optical Parameters
- Lumen Output: 20,439Lm, 42,425Lm, 58,852Lm, 79,230Lm
- Lumen Efficacy: 140Lm/W
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Finish: Polyster powder coating
- Hardware: Stainless steel 316
- Lens Material: Clear Glass or Clear PC
- Mounting Options: Yoke
- Product Weight: 16.5lbs/7.5kg, 30.9lbs/14kg, 39.7lbs/18kg, 50.7lbs/23kg
- Cable Entry: 2 x M20
- Product Dimensions (L×W×H): 10.2×9.1×5.8 in (260x230x148 mm), 22x11x6.7 in (559x280x171 mm), 24.9x11x6.7 in (632x280x171 mm), 19.2×16.5×6.7 in (487x420x171 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°C~+55°C
- Optimal Operating Temperature: 25°C
Experience the Difference
The Crane Master Series is the ideal solution for demanding lighting applications. Its combination of performance, efficiency, and durability sets it apart from the competition. Contact us today to learn more about how the Crane Master Series can enhance your operations.
